VASCULAR ACCESS

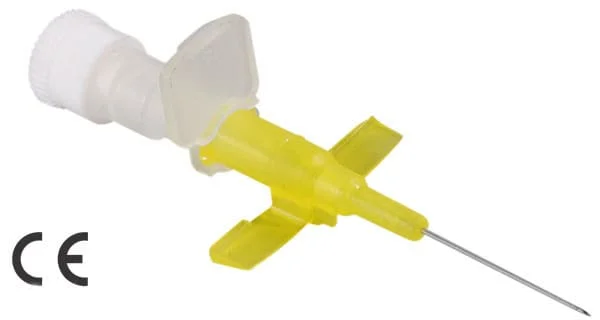

IV Cannula With Wings Without Port

Item Code: IVCW/IIA/B/

Product Overview

IV Cannula with Wings Without Port is designed to provide peripheral intravenous access for the administration of fluids and medications. Its integrated wings support secure handling and stabilization during insertion and placement, while the streamlined design facilitates convenient connection to compatible infusion systems. It is suitable for intravenous therapy in clinical and hospital settings.

PRODUCT INFORMATION

Technical Specifications

Detailed product specifications and available configurations.

Specification Details
Product Type Peripheral IV Cannula
Available Variants With Wings & Port / With Wings Without Port / Without Wings & Without Port
Material Polypropylene, PE, Polyacetal, Stainless Steel, PTFE/FEP*
Intended Use Peripheral Intravenous Access
Needle Material Stainless Steel*
Available Gauges 24G, 26G
Colour Coding Gauge-Specific
Sterilization Ethylene Oxide (EO) Sterilized
Usage Single Use
* All Plastics used in manufacturing are Medical Grade. DEHP Free and Tested for Bio-Compatibility as per ISO10993 by EU Accredited laboratory.

Length & Volume

Explore the available lengths and corresponding prime volume specifications.

Colour Code Gauge OD (mm) Length (mm) Flow Rate (ml/min)
Yellow 24G 0.70 19 14
Violet 26G 0.60 19 13
PRODUCT INFORMATION

The General Features of Our I.V. Cannula are

  • Catheter is made of Medical Grade Virgin PTFE (Teflon) which is internationally accepted high quality
  • PTFE Tubing-The Most Bio- Compatible Material, with longer indwelling time and lowest co-efficient of friction, thereby smoothening the insertion.
  • Colour coded cap for easy gauge identification.
  • Sharp 3 facet bevel with back cut imported needle to reduce the penetration force for the ease of cannulation
  • Types of IV Cannula - IV Cannula Sizes Flow Rates and Color Codes, Complications, IV Cannula Sizes, IV Cannula Insertion
  • Designed for smooth insertion into peripheral veins.
  • Reliable Fluid Delivery- Enables intravenous administration of fluids and medications.
  • Multiple Sizes-Available in different gauges to suit clinical requirements.
  • Sterile and Single Use
  • Multiple Configurations-Available with wings and an injection port, with wings only, or without wings and port.
